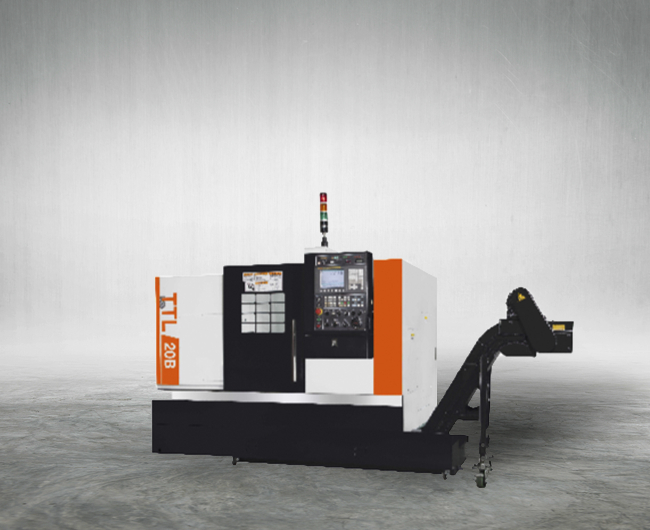

Extreme Spin for the New Era!
The TTL Series offers high productivity and high accuracy performance with exceptional cutting capacity and part quality. TTL Series is the best choice for ultra-performance turning center. With Y axis function, TTL Series can reach your higher level and various cutting needs.
High Efficiency / High Accuracy
- The one-piece die-cast base includes FEM analysis to achieve optimal ribbing and structure to further improve machine rigidity and stability.
- 30゚ The inclined bed design has a low center of gravity for easier chip management and a better ergonomic design. The TTL series also offers an optional rear discharge chip conveyor.
- Servo motors are directly connected to the high pre-tensioned ball screw to minimize backlash and thermal distortion and improve machining accuracy.
- The TTL Series includes a high-quality linear guide system that offers better accuracy, higher speed and lower friction than the boxed way. The TTL Series can achieve a maximum axial speed advance of 30m/min on both the X and Z axis.
Technical Specifications
| Description | Unit | TTL - 20B Series | TTL - 20BL Series | |
|---|---|---|---|---|
| Capacity | ||||
| Headstock Type | 0i-TF | 0i-TF |
