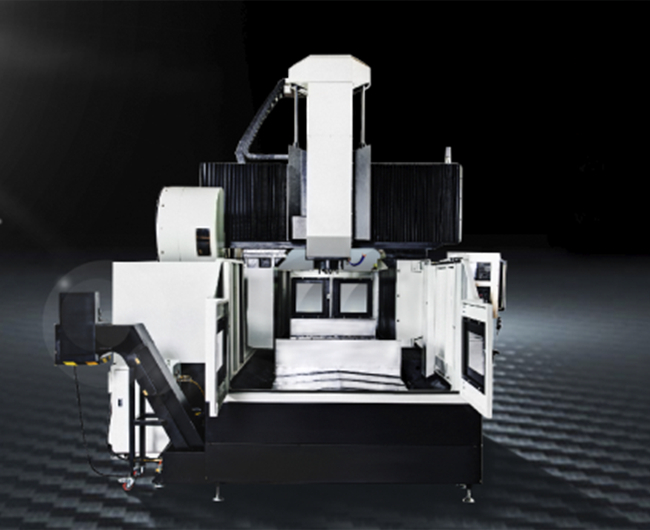

DMC - 4015

DCM

Work range up to 5200 mm

Widest column design in the class

Unique zig-zag design in the cross-beam





Multiple machining solution with options.

- Heavy duty cuttung solution with ZF gear box

- Multi face milling with angular heads

- Increase accuracy with ball screw cooling and linear scales

Technical Specifications

Table
Area of Table mm 4000 x 1200
Working Area mm 4000 x 1500
T-Slot mm 190 x 28 x 6
Travel
X - Axis Travel mm 4000
Y - Axis Travel mm 1500
Z - Axis Travel mm 1500
Door Width mm 1500
Spindle
Spindle Taper BT50
Spindle R.P.M. rpm 6000
3 - Axis Rapid Traverse m/min 12/20/12
