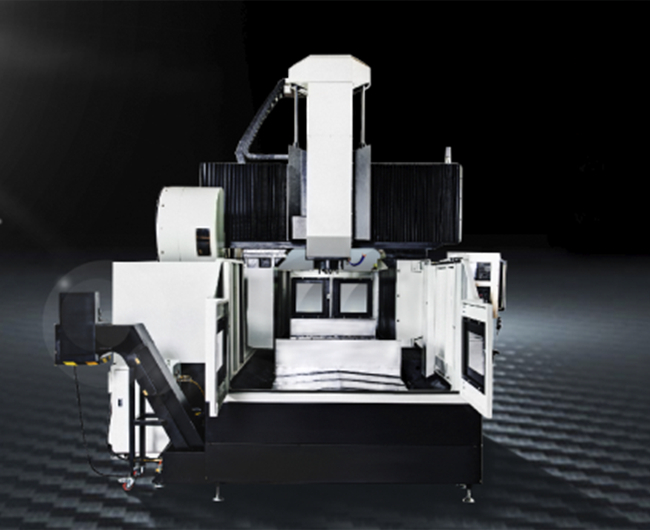

DCM
Work range up to 5200 mm
Widest column design in the class
Unique zig-zag design in the cross-beam
Multiple machining solution with options.
- Heavy duty cuttung solution with ZF gear box
- Multi face milling with angular heads
- Increase accuracy with ball screw cooling and linear scales
Technical Specifications
| Table | ||
|---|---|---|
| Area of Table | mm | 2800 x 1200 |
| Working Area | mm | 2800 x 1500 |
| T-Slot | mm | 6300 |
| Work Table Max Weight | kgs | 6300 |
| Travel | ||
| X-Axis Travel | mm | 2800 |
| Y-Axis Travel | mm | 1500 |
| Z-Axis Travel | mm | 860 |
| Door Width | mm | 1500 |
| Spindle | ||
| Spindle Taper | BT50 | |
| Spindle R.P.M. | rpm | 6000 |
